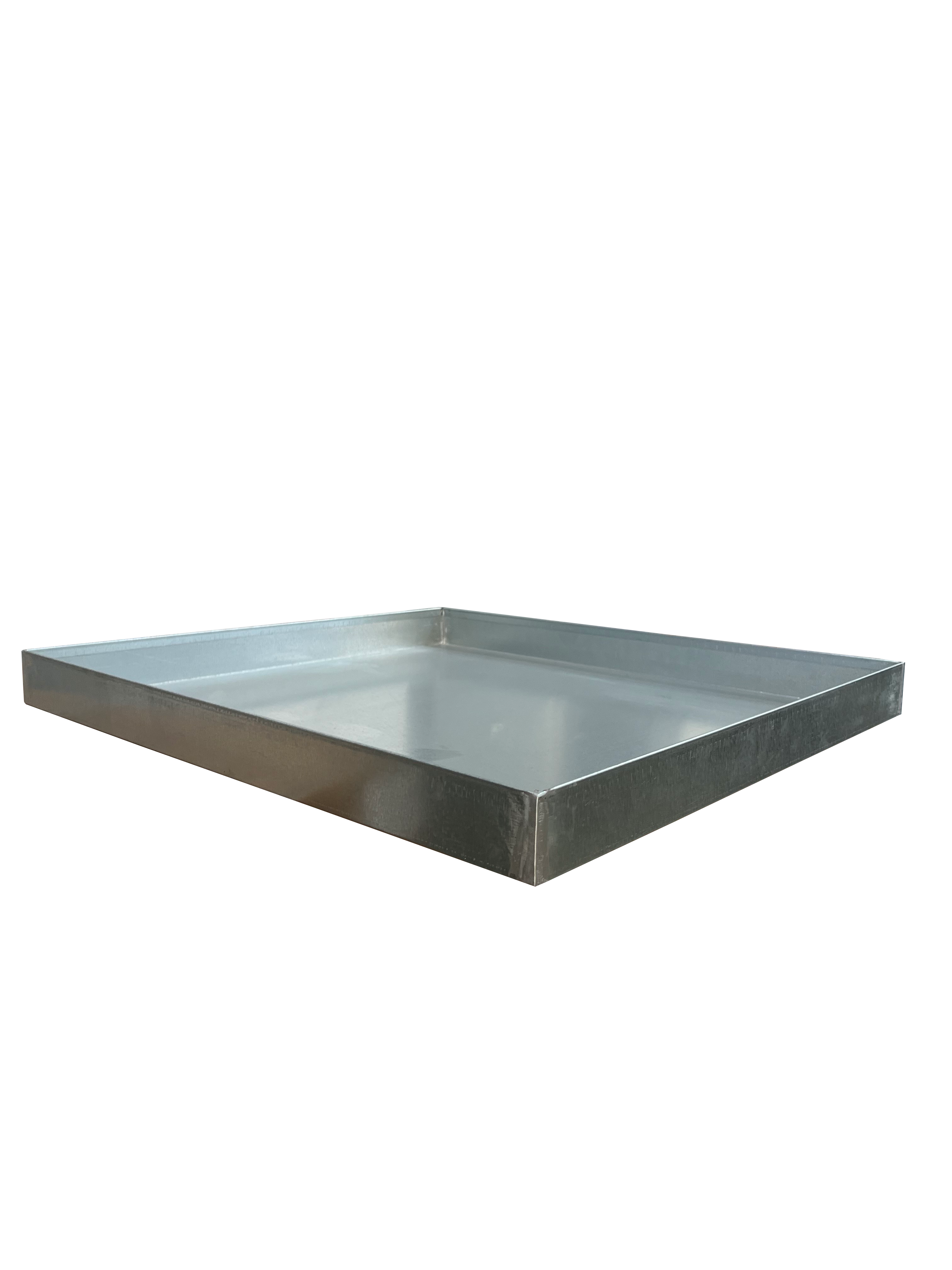

Understanding Drain Pans: A Comprehensive Guide for 2024

Drain pans are essential components in various systems, especially in HVAC (Heating, Ventilation, and Air Conditioning), refrigeration, and plumbing applications. They play a crucial role in preventing water damage and ensuring the efficient operation of equipment. This article will explore the purpose, types, installation, and maintenance of drain pans, as well as their importance in safeguarding your property.

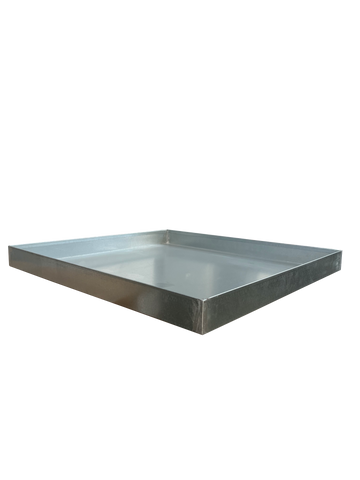

What is a Drain Pan?

A drain pan is a shallow container designed to catch and hold water that may leak or overflow from equipment. It is typically made from materials like plastic, metal, or fiberglass, and is placed beneath appliances such as air conditioning units, water heaters, and refrigerators. The primary function of a drain pan is to collect excess water and direct it to a drainage system, preventing water damage to surrounding areas.

Purpose of Drain Pans

1. Water Damage Prevention: The primary purpose of a drain pan is to prevent water from leaking onto floors, walls, or ceilings, which can lead to mold growth, structural damage, and costly repairs.
2. Equipment Protection: By catching leaks, drain pans help protect the equipment itself from damage caused by water accumulation, which can lead to corrosion and reduced efficiency.
3. Ease of Maintenance: Drain pans facilitate easier maintenance by providing a clear indication of leaks or issues with the equipment, allowing for timely repairs.

Types of Drain Pans

Drain pans come in various types, each designed for specific applications:

 Standard Drain Pans

These are typically used under HVAC systems and water heaters. They are designed to catch any condensation or leaks that may occur during normal operation.

 Overflow Drain Pans

These pans are specifically designed to handle overflow situations, such as from a washing machine or a sink. They often feature a larger capacity and may include a secondary drainage outlet.

 Custom Drain Pans

For unique applications or specific equipment, custom drain pans can be fabricated to fit particular dimensions and requirements. This ensures optimal protection and functionality.

Uses of Drain Pans: Essential Functions and Applications

Drain pans serve a variety of important functions across different industries and applications. Their primary role is to collect and manage excess water, preventing damage and ensuring the efficient operation of equipment. Below are some of the key uses of drain pans:

 HVAC Systems

In heating, ventilation, and air conditioning (HVAC) systems, drain pans are crucial for managing condensation.

• Condensate Collection: As air conditioning units operate, they produce condensation. Drain pans collect this moisture, preventing it from leaking onto floors and causing water damage.
• Preventing Mold Growth: By capturing excess water, drain pans help reduce the risk of mold and mildew growth in indoor environments.

 Refrigeration Units

Refrigerators and freezers also benefit from the use of drain pans.

• Leak Management: Drain pans catch any leaks from the refrigeration system, such as coolant leaks or condensation from the evaporator coils.
• Improving Efficiency: By managing excess moisture, drain pans help maintain optimal operating conditions, improving the efficiency of the refrigeration unit.

 Water Heaters

Water heaters can develop leaks over time, making drain pans an essential component.

• Leak Prevention: A drain pan placed under a water heater captures any leaks that may occur, preventing water damage to floors and surrounding structures.
• Safety Measures: In some installations, drain pans are required by building codes to protect against potential flooding.

 Washing Machines

Washing machines can overflow or leak, making drain pans particularly useful in laundry rooms.

• Overflow Protection: Drain pans catch any excess water from an overfilled washer or a malfunctioning hose, preventing damage to floors and walls.
• Easy Cleanup: They simplify cleanup in case of leaks, allowing for quick drainage and maintenance.

 Industrial Applications

In industrial settings, drain pans are used to manage spills and leaks from machinery.

• Chemical Spill Management: Drain pans can be used to contain spills from chemical storage or processing equipment, helping to prevent environmental contamination.
• Equipment Protection: They protect sensitive machinery from water damage, ensuring longevity and reliability.

 Aquariums and Hydroponics

In aquaculture and hydroponic systems, drain pans play a vital role.

• Water Collection: Drain pans collect excess water or runoff from systems, ensuring that water is reused or properly disposed of.
• Preventing Water Loss: They help maintain optimal water levels in aquariums and hydroponic setups, preventing overflows and maintaining system efficiency.

 Food Service Equipment

In commercial kitchens, drain pans are used under various appliances.

• Grease Management: Drain pans can catch grease and oil drips from fryers and grills, preventing slips and maintaining cleanliness.
• Preventing Contamination: By managing spills, drain pans help maintain food safety standards and prevent cross-contamination.

Buying Guide for Drain Pans

Buying Guide for Drain Pans: Key Considerations and Tips

When it comes to selecting the right drain pan for your needs, there are several factors to consider. Whether you’re looking to protect your HVAC system, water heater, washing machine, or any other equipment, choosing the right drain pan is crucial for effective water management. This buying guide will help you navigate the options available and make an informed decision.

  Determine the Purpose

Before purchasing a drain pan, it’s essential to identify its intended use. Different applications may require specific features:

• HVAC Systems: Look for pans designed to handle condensation and potential leaks.
• Water Heaters: Ensure the pan is large enough to catch any leaks that may occur.
• Washing Machines: Select a pan that can accommodate overflow situations.
• Industrial Equipment: Consider chemical-resistant materials if spills are a concern.

 Material Selection

Drain pans are available in various materials, each with its advantages and disadvantages:

• Plastic: Lightweight and resistant to rust and corrosion. Ideal for residential applications but may not withstand heavy industrial use.
• Metal (Aluminum or Stainless Steel): Durable and robust, metal pans are suitable for high-temperature applications and industrial settings. Stainless steel is particularly resistant to corrosion.
• Fiberglass: Offers durability and resistance to chemicals, making it suitable for industrial and commercial applications.

 Size and Capacity

Choosing the right size is critical to ensuring effective water management:

• Dimensions: Measure the area where the drain pan will be installed to ensure a proper fit. The pan should extend beyond the edges of the appliance to catch any potential leaks.
• Capacity: Consider the volume of water the pan needs to hold. Larger appliances may require bigger pans to prevent overflow.

 Drainage Features

Look for specific drainage features that enhance functionality:

• Drain Outlet: Some pans come with a built-in drain outlet to direct water to a drainage system. This feature is particularly useful for continuous water management.
• Slope Design: A sloped bottom can help direct water toward the drain outlet, improving efficiency.

 Installation Requirements

Consider the ease of installation when selecting a drain pan:

• Pre-Drilled Holes: Some pans come with pre-drilled holes for easy attachment to the floor or wall.
• Weight: Lightweight pans are easier to install, while heavier pans may require additional support.

 Code Compliance

Ensure that the drain pan meets local building codes and regulations:

• Building Codes: Some jurisdictions have specific requirements for drain pans, especially in residential and commercial installations. Check local codes to ensure compliance.

 Maintenance and Cleaning

Consider how easy it will be to maintain and clean the drain pan:

• Smooth Surfaces: Choose pans with smooth surfaces to prevent debris buildup and make cleaning easier.
• Accessibility: Ensure the pan is accessible for regular inspections and maintenance.

 Budget Considerations

Drain pans come in a range of prices, so it’s essential to set a budget:

• Cost vs. Quality: While it may be tempting to opt for the cheapest option, consider the long-term benefits of investing in a high-quality drain pan that will provide better protection and durability.

 Brand Reputation and Reviews

Research brands and read customer reviews to gauge the quality and reliability of the drain pans you are considering:

• Reputable Brands: Look for manufacturers known for producing durable and effective drain pans.
• Customer Feedback: Reviews can provide insights into the performance and durability of the product.

 With or Without Drain Hole

Deciding whether you need a drain pan with or without a drain hole can influence its functionality:

• With Drain Hole:
• Advantages: Pans with a built-in drain hole allow for continuous drainage of collected water, directing it to an external drainage system. This feature is particularly useful for appliances that produce a significant amount of condensation or are prone to leaks.
• Applications: Ideal for HVAC systems, water heaters, and washing machines where ongoing water management is necessary.

• Without Drain Hole:
• Advantages: Pans without a drain hole are typically simpler and may be easier to install. They are suitable for applications where regular manual emptying is acceptable or where the risk of overflow is minimal.
• Applications: Often used in situations where equipment is less likely to leak or in areas where water can be easily managed.

Galvanized Steel vs. Plastic Drain Pans: A Comparison

When it comes to choosing a drain pan, two of the most popular materials are galvanized steel and plastic. Both have their advantages and disadvantages, and the choice ultimately depends on your specific needs and preferences. Let's compare these two materials to help you make an informed decision.

Durability

Galvanized steel is known for its exceptional durability and resistance to wear and tear. It can withstand heavy loads and is less prone to cracking or breaking compared to plastic. On the other hand, plastic drain pans are also durable, but they may not be as robust as their steel counterparts.

Corrosion Resistance

Galvanized steel is coated with a layer of zinc, which provides excellent protection against corrosion. This makes it suitable for use in damp environments or areas with high humidity. Plastic, being a non-metallic material, is also resistant to corrosion and is not affected by moisture.

Weight

Plastic drain pans are generally lighter than galvanized steel, making them easier to handle and install. This can be particularly beneficial in situations where the pan needs to be moved or repositioned frequently.

Cost

Plastic drain pans are typically more affordable than galvanized steel. The cost difference can be significant, especially when purchasing in bulk or for large-scale projects.

Appearance

Plastic drain pans are available in a variety of colors, allowing you to match them with your existing decor. Galvanized steel, on the other hand, has a more industrial look and is typically available in a silver or gray finish.

Best Drain Pans for Residential vs. Commercial Use

When choosing drain pans for residential or commercial use, there are several factors to consider:

Residential Use

In residential settings, drain pans are primarily used under appliances such as air conditioners, water heaters, and washing machines. Key considerations include:

• Size: Ensure the pan fits the specific appliance and can accommodate any potential leaks or condensation.
• Material: Plastic or galvanized steel are both suitable options for residential use. Plastic may be more aesthetically pleasing, while steel offers greater durability.
• Drain Hole: A drain hole is recommended for continuous water management, especially for appliances that produce significant condensation.

Commercial Use

Commercial applications, such as restaurants, hotels, and industrial facilities, often require more heavy-duty drain pans. Important factors include:

• Size: Commercial settings may require larger drain pans to handle higher volumes of water or accommodate multiple pieces of equipment.
• Material: Galvanized steel or fiberglass are preferred choices for commercial use due to their durability and resistance to chemicals and heavy loads.
• Drain Hole: A drain hole is essential for continuous water management in commercial settings, where equipment may produce large amounts of condensation or be prone to leaks.

Installation and Maintenance of Drain Pans

Proper installation and maintenance of drain pans are crucial for ensuring their effectiveness in managing water and preventing damage. This section provides a step-by-step guide on how to install a drain pan, maintenance tips for longevity, and common issues along with troubleshooting advice.

How to Install a Drain Pan

Installing a drain pan is a straightforward process, but it requires careful attention to detail to ensure it functions correctly. Here’s a step-by-step guide:

 Gather Necessary Tools and Materials

• Drain pan
• Measuring tape
• Level
• Drill (if needed for mounting)
• Sealant (optional)
• Screwdriver
• Safety goggles and gloves

 Measure the Installation Area

• Measure the dimensions of the area where the drain pan will be installed, ensuring it fits snugly under the appliance (e.g., HVAC unit, water heater, washing machine).

 Position the Drain Pan

• Place the drain pan directly beneath the appliance, ensuring it is centered and level. Use a level to check that the pan is even, as a tilted pan may not drain properly.

 Secure the Drain Pan (if necessary)

• If the drain pan has pre-drilled holes, use screws to secure it to the floor or wall. This is especially important in high-traffic areas to prevent movement.
• If the pan does not have pre-drilled holes, you may use adhesive or sealant to keep it in place.

 Connect to Drainage System (if applicable)

• If the drain pan has a drain outlet, connect it to the drainage system using appropriate tubing or piping. Ensure all connections are secure and watertight.

 Test the Installation

• Once installed, run the appliance to check for leaks or water accumulation in the pan. Ensure that water drains properly if a drainage outlet is connected.

Maintenance Tips for Longevity

To ensure the longevity and effectiveness of your drain pan, follow these maintenance tips:

 Regular Inspections

• Periodically check the drain pan for signs of rust, corrosion, or cracks. Look for any signs of water accumulation or leaks.

 Clean the Pan

• Remove any debris, dust, or sediment that may accumulate in the pan. A clean pan allows for better drainage and reduces the risk of clogs.

 Check Drainage Lines

• If the drain pan has a drainage outlet, inspect the connected drainage lines for clogs or blockages. Clear any obstructions to ensure proper water flow.

 Monitor Equipment

• Keep an eye on the appliance above the drain pan for any signs of leaks or malfunctions. Address any issues promptly to prevent water damage.

 Seasonal Maintenance

• For HVAC systems, perform seasonal maintenance to ensure the unit is functioning correctly, which includes checking the drain pan.

Common Issues and Troubleshooting

Even with proper installation and maintenance, drain pans may encounter some common issues. Here’s how to troubleshoot them:

 Water Accumulation in the Pan

• Cause: This may indicate a leak from the appliance or a blockage in the drainage line.
• Solution: Inspect the appliance for leaks and check the drainage line for clogs. Clear any blockages and repair any leaks.

 Overflowing Drain Pan

• Cause: An overflowing drain pan may result from a clogged drain line or a malfunctioning appliance.
• Solution: Clear any clogs in the drainage line and check the appliance for issues. If the appliance is malfunctioning, consider calling a professional for repairs.

 Rust or Corrosion

• Cause: Metal drain pans, especially galvanized steel, may develop rust over time due to moisture exposure.
• Solution: If rust is present, consider replacing the pan or applying a rust-inhibiting sealant to prevent further corrosion.

 Cracks or Breaks in the Pan

• Cause: Plastic drain pans can crack due to heavy loads or extreme temperature changes.
• Solution: Inspect the pan regularly and replace it if significant damage is found.

Benefits of Using Drain Pans

Drain pans are often overlooked components in many residential and commercial settings, but they serve crucial functions that can protect your property and enhance safety. Below, we explore the reasons why you need a drain pan and the environmental and safety benefits they provide.

Why You Need a Drain Pan

1. Water Damage Prevention
• Leak Management: Drain pans are designed to catch leaks and condensation from appliances such as HVAC units, water heaters, and washing machines. By containing excess water, they help prevent damage to floors, walls, and ceilings, which can lead to costly repairs.
• Mold and Mildew Control: Moist environments are breeding grounds for mold and mildew. Drain pans help manage moisture levels, reducing the risk of mold growth that can negatively impact indoor air quality and health.

1. Equipment Protection
• Extended Lifespan: By preventing water accumulation, drain pans protect appliances from corrosion and damage, ultimately extending their lifespan. This can save you money on repairs and replacements over time.
• Operational Efficiency: Keeping appliances dry and functioning properly can enhance their efficiency, leading to lower energy costs and improved performance.

1. Ease of Maintenance
• Clear Indication of Issues: Drain pans provide a visual cue for potential leaks or malfunctions. If you notice water accumulation in the pan, it can prompt timely inspections and repairs, preventing more significant problems down the line.
• Simplified Cleanup: In the event of a leak or overflow, drain pans make cleanup easier by containing the water in one location, minimizing damage and mess.

Environmental and Safety Benefits

1. Reduced Water Waste
• Efficient Water Management: By capturing leaks and condensation, drain pans help ensure that water is managed effectively rather than wasted. This is especially important in regions where water conservation is a priority.
• Sustainable Practices: Using drain pans can contribute to sustainable practices by preventing unnecessary water loss and promoting responsible usage.

1. Enhanced Safety
• Slip Hazard Reduction: Water accumulation on floors can create slip hazards, leading to accidents and injuries. Drain pans help keep floors dry, reducing the risk of slips and falls, particularly in commercial settings.
• Fire Prevention: In some cases, water leaks can lead to electrical hazards or damage to equipment that may pose fire risks. By managing leaks effectively, drain pans can help mitigate these dangers.

1. Improved Indoor Air Quality
• Mold and Allergens: By controlling moisture levels and preventing mold growth, drain pans contribute to better indoor air quality. This is particularly important for individuals with allergies or respiratory issues.
• Healthier Living Environment: A dry and well-maintained environment is crucial for overall health and well-being. Using drain pans helps create a safer and healthier living space.

Custom Drain Pans: When to Choose and Key Differences

Custom drain pans can be an excellent solution for specific applications where standard options may not suffice. Understanding when to opt for a custom drain pan and the differences between custom and standard drain pans can help you make an informed decision that meets your unique needs.

When to Opt for a Custom Drain Pan

1. Unique Dimensions
• If the space beneath your appliance or equipment has non-standard dimensions, a custom drain pan can be designed to fit perfectly. This is particularly important for specialized equipment or installations in tight or irregular spaces.

1. Specific Material Requirements
• Some applications may require materials that are resistant to certain chemicals, high temperatures, or other environmental factors. Custom drain pans can be made from specialized materials that meet these specific needs, such as fiberglass or specialized metals.

1. Specialized Drainage Features
• If your application requires unique drainage solutions, such as multiple drain outlets, sloped designs for efficient water flow, or integrated filtration systems, a custom drain pan can be tailored to include these features.

1. Aesthetic Considerations
• In some cases, the appearance of the drain pan may be important, especially in residential settings or visible commercial spaces. Custom drain pans can be designed to match the decor or branding of the environment.

1. High-Volume Applications
• For industrial or commercial settings where large volumes of water are expected, custom drain pans can be designed with larger capacities or specific shapes to manage water effectively and prevent overflow.

Custom vs. Standard Drain Pans

Understanding the differences between custom and standard drain pans can help you determine which option is best for your needs.

 Design and Dimensions

• Custom Drain Pans:
• Tailored to fit specific dimensions and shapes, ensuring an exact fit for unique installations.
• Can accommodate irregular spaces or specialized equipment, providing optimal protection.

• Standard Drain Pans:
• Available in pre-defined sizes and shapes, suitable for common appliances and installations.
• May not fit perfectly in all situations, potentially leading to gaps or inadequate coverage.

Material Options

• Custom Drain Pans:
• Can be made from a variety of materials based on specific requirements, such as corrosion resistance, chemical resistance, or temperature tolerance.
• Allows for selection of materials that align with the environmental conditions of the installation.

• Standard Drain Pans:
• Typically made from common materials like plastic or galvanized steel, which may not meet all specific needs.
• Limited material options can restrict effectiveness in specialized applications.

Cost

• Custom Drain Pans:
• Generally more expensive due to the tailored design and manufacturing process. The cost can vary based on size, material, and complexity of features.
• May require longer lead times for production and delivery.

• Standard Drain Pans:
• More affordable and readily available, making them a cost-effective solution for common applications.
• Quick to purchase and install, with no waiting period for custom manufacturing.

Installation and Maintenance

• Custom Drain Pans:
• Designed for specific installations, which may simplify the installation process if the fit is perfect.
• Maintenance may vary based on the material and design but can be tailored to facilitate easier access for cleaning and inspections.

• Standard Drain Pans:
• Easy to install and replace, with straightforward maintenance requirements.
• May require adjustments or additional sealing if the fit is not perfect.
